Imagine installing a new air conditioner at the far end of a building. The wiring appears correct, the circuit breaker is working, and the supply voltage is normal at the distribution panel. However, when the air conditioner starts, it runs poorly, the motor overheats, and the lights become slightly dim. The problem may not be the appliance itself—it could be voltage drop.
Voltage drop is one of the most important concepts in electrical engineering because it directly affects the performance, efficiency, and safety of electrical systems. Excessive voltage drop can reduce equipment life, increase energy losses, cause motors to overheat, and lead to poor system performance. That is why electricians, engineers, and technicians always calculate voltage drop before selecting cable sizes or designing electrical installations.
Understanding the Voltage Drop Formula helps you determine how much voltage is lost as electricity travels through a conductor. Whether you are designing a residential wiring system, an industrial power distribution network, or a solar installation, knowing how to calculate voltage drop is an essential skill.
In this guide, you will learn the Voltage Drop Formula, its working principle, different formulas for DC, single-phase, and three-phase systems, main components, practical examples, and real-world applications using simple and easy-to-understand language.
What is Voltage Drop Formula?
The Voltage Drop Formula is a mathematical equation used to calculate the amount of voltage lost when electrical current flows through a conductor such as a wire or cable.
As electricity travels through a conductor, the conductor’s resistance opposes the flow of current. This resistance causes a small portion of the electrical energy to be converted into heat, resulting in a reduction in voltage between the power source and the electrical load.
In simple words, the voltage available at the equipment is always slightly lower than the voltage supplied by the source because some voltage is lost along the cable.
Simple Definition
A Voltage Drop Formula calculates the difference between the supply voltage and the voltage received by the electrical device due to the resistance of the conductor.
Practical Example
Suppose a building supplies 230 V to an electric motor.
After traveling through a long cable, the motor receives only 223 V.
Voltage Drop = 230 V − 223 V = 7 V
This means the cable caused a voltage loss of 7 volts.
Voltage Drop Formula Working Principle
The Voltage Drop Formula working principle is based on Ohm’s Law, which states that voltage equals current multiplied by resistance.
Whenever current flows through a wire, the wire offers some resistance. This resistance causes electrical energy to be lost as heat, reducing the voltage reaching the load.
Step-by-Step Working Principle
Step 1: Electrical Power Leaves the Source
Electricity starts flowing from the power source, such as:
- Transformer
- Generator
- Battery
- Distribution Panel
Step 2: Current Travels Through the Cable
The electrical conductor carries current toward the connected equipment.
Every conductor has a certain resistance.
Longer cables have higher resistance.
Smaller cables also have higher resistance.
Step 3: Resistance Opposes Current Flow
As current flows, the conductor resists the movement of electrons.
This resistance converts part of the electrical energy into heat.
The higher the resistance, the greater the voltage loss.
Step 4: Voltage Decreases
By the time electricity reaches the load, the voltage has decreased slightly.
This reduction is called Voltage Drop.
Step 5: Equipment Receives Lower Voltage
The electrical equipment operates using the remaining voltage.
If the voltage drop is too high, equipment performance decreases.
Possible effects include:
- Slow motor speed
- Dim lighting
- Equipment overheating
- Reduced efficiency
- Shortened equipment life
Easy Analogy
Imagine water flowing through a long garden hose.
- Water Tank = Voltage Source
- Water = Electric Current
- Hose = Electrical Cable
- Friction inside the hose = Resistance
As the hose becomes longer, more water pressure is lost before reaching the end.
Similarly, electrical voltage decreases as current travels through a conductor.

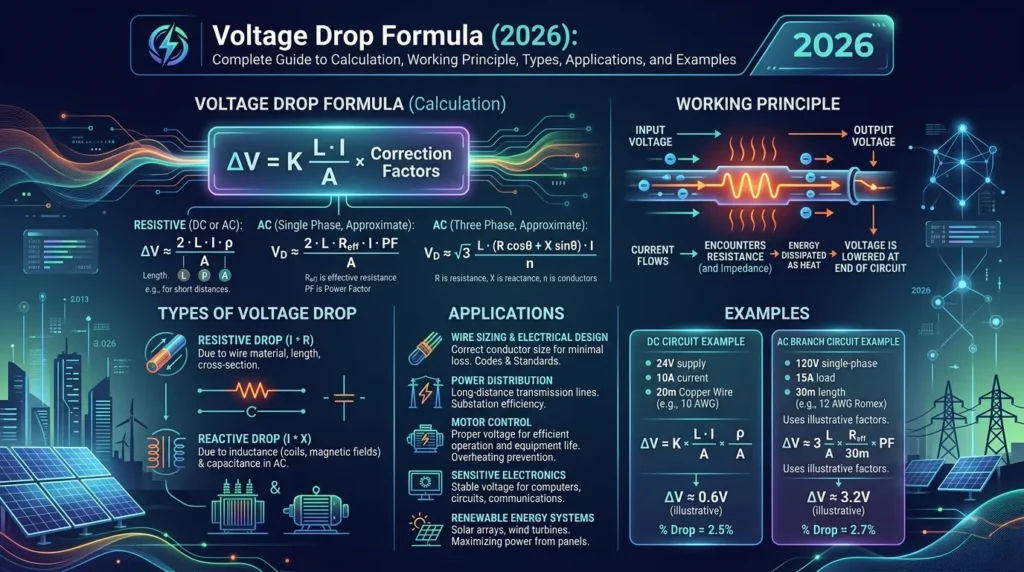

Voltage Drop Formula
Different electrical systems require different voltage drop equations.
DC Voltage Drop Formula
For direct current (DC) circuits:
Voltage Drop (V) = 2 × I × R
Where:
- V = Voltage Drop (Volts)
- I = Current (Amperes)
- R = Resistance of the conductor (Ohms)
The factor 2 represents the outgoing and return conductors.
Alternative DC Formula
When resistance is calculated from cable length:
Voltage Drop = (2 × L × I × ρ) ÷ A
Where:
- L = Cable Length
- I = Current
- ρ = Resistivity of conductor
- A = Cross-sectional area
Single-Phase Voltage Drop Formula
For AC single-phase systems:
Voltage Drop = 2 × I × L × (R × cos φ + X × sin φ)
Where:
- I = Current
- L = Cable Length
- R = Resistance
- X = Reactance
- cos φ = Power Factor
- sin φ = Reactive Component
For most basic electrical calculations, reactance is very small and often ignored.
Simplified Single-Phase Formula
Voltage Drop = 2 × I × R
This simplified equation is commonly used in residential wiring calculations.
Three-Phase Voltage Drop Formula
For three-phase electrical systems:
Voltage Drop = √3 × I × L × (R × cos φ + X × sin φ)
The factor √3 (1.732) is used because of the three-phase power relationship.
This formula is widely used in:
- Industrial Power Systems
- Motor Installations
- Manufacturing Plants
- Power Distribution Networks
Types of Voltage Drop Formula
Different electrical installations require different calculation methods.
DC Voltage Drop Formula
Used for:
- Battery Systems
- Solar Power Systems
- UPS Systems
- Electric Vehicles
- DC Control Panels
Advantages
- Simple calculation
- High accuracy
- Easy cable sizing
Single-Phase Voltage Drop Formula
Used in:
- Residential Buildings
- Small Offices
- Shops
- Lighting Circuits
- Household Appliances
Advantages
- Easy to calculate
- Suitable for domestic installations
- Supports cable selection
Three-Phase Voltage Drop Formula
Used for:
- Industrial Plants
- Manufacturing Facilities
- Large Motors
- HVAC Systems
- Power Distribution Systems
Advantages
- Accurate industrial calculations
- Supports balanced load analysis
- Suitable for high-power equipment
Main Components of the Voltage Drop Formula
Every Voltage Drop Formula contains several important variables.
Current (I)
Current is the flow of electric charge through the conductor.
Higher current produces a greater voltage drop.
Resistance (R)
Resistance is the opposition offered by the conductor.
Resistance depends on:
- Material
- Length
- Cross-sectional area
- Temperature
Higher resistance increases voltage drop.
Cable Length (L)
Longer cables create higher resistance.
As cable length increases, voltage drop also increases.
Conductor Material
Different materials have different electrical resistivity.
Common conductor materials include:
- Copper (Lower Resistance)
- Aluminum (Higher Resistance)
Copper cables generally produce less voltage drop than aluminum cables of the same size.
Cross-Sectional Area (A)
Thicker cables have lower resistance.
Increasing cable size reduces voltage drop significantly.
Power Factor (cos φ)
Power factor is mainly important in AC systems.
Lower power factor causes higher voltage drop.
Reactance (X)
Reactance represents the opposition caused by inductance and capacitance.
It becomes more important in:
- Long cables
- High-voltage systems
- Industrial installations
Advantages of Voltage Drop Formula
Understanding the Voltage Drop Formula advantages and disadvantages helps engineers, electricians, and technicians design safer and more efficient electrical systems. By calculating voltage loss before installation, it becomes easier to select the correct cable size and maintain reliable equipment performance.
Advantages
- Ensures proper cable sizing for electrical installations.
- Reduces energy losses caused by excessive resistance.
- Improves the efficiency of electrical systems.
- Protects motors from overheating due to low voltage.
- Prevents dimming of lights in long wiring circuits.
- Increases the lifespan of electrical equipment.
- Helps comply with electrical standards and wiring codes.
- Reduces maintenance and repair costs.
- Improves overall power quality.
- Supports safe and reliable power distribution.
- Essential for residential, commercial, and industrial electrical design.
- Simplifies electrical load calculations for engineers and technicians.
Real-World Benefits
Using the correct Voltage Drop Formula ensures that equipment receives the required operating voltage, resulting in better performance, lower operating costs, and improved electrical safety.
Disadvantages / Limitations
Although the Voltage Drop Formula is very useful, it also has some practical limitations.
Limitations
- Basic formulas may ignore cable reactance in simple calculations.
- Temperature changes can affect conductor resistance.
- Harmonics in modern electrical systems may increase voltage drop.
- Incorrect current values produce inaccurate results.
- Long cable routes require more detailed calculations.
- Voltage drop calculations alone cannot determine overall system efficiency.
- Different conductor materials require different resistance values.
- Installation conditions such as cable grouping and ambient temperature also affect actual voltage drop.
These limitations can be minimized by using accurate cable data and following recognized electrical standards.
Voltage Drop Formula Applications
The Voltage Drop Formula applications cover almost every field of electrical engineering because maintaining proper voltage is essential for safe and efficient operation.
Residential Electrical Wiring
Electricians calculate voltage drop before installing:
- Lighting circuits
- Socket outlets
- Air conditioners
- Water heaters
- Ceiling fans
This ensures that appliances receive sufficient voltage even when located far from the distribution board.
Commercial Buildings
Voltage drop calculations are used in:
- Office buildings
- Shopping malls
- Hotels
- Hospitals
- Educational institutions
They help maintain stable voltage across long cable runs.
Industrial Power Distribution
Factories use the Voltage Drop Formula for:
- Large induction motors
- Motor Control Centers (MCC)
- Power Distribution Panels
- Industrial machinery
- Manufacturing equipment
Accurate calculations improve motor performance and reduce energy losses.
Solar Power Systems
Solar installers calculate voltage drop to improve:
- Solar panel efficiency
- Battery charging performance
- Inverter operation
- DC cable sizing
Reducing voltage loss increases the overall efficiency of solar power systems.
Electric Vehicle (EV) Charging Systems
Modern EV charging stations require accurate voltage drop calculations to ensure safe and efficient charging over long cable distances.
Renewable Energy Projects
The formula is widely used in:
- Wind power systems
- Hybrid energy systems
- Battery storage systems
- Microgrids
Data Centers
Stable voltage is critical for servers and communication equipment. Engineers calculate voltage drop to prevent interruptions and improve power reliability.
Electrical Panel Design
Electrical panel designers use voltage drop calculations to select:
- Cable sizes
- Busbars
- Circuit breakers
- Protective devices
This ensures efficient power distribution and compliance with electrical standards.
Difference Between Voltage Drop and Voltage Regulation
Many beginners confuse these two electrical concepts. Understanding the difference between Voltage Drop and Voltage Regulation is important for designing efficient electrical systems.
| Feature | Voltage Drop | Voltage Regulation |
|---|---|---|
| Definition | Loss of voltage along a conductor | Ability of a power source to maintain constant output voltage |
| Cause | Resistance and reactance of cables | Load variation and source characteristics |
| Occurs In | Electrical cables and conductors | Generators, transformers, and power supplies |
| Main Purpose | Measures voltage loss | Measures voltage stability |
| Unit | Volts (V) or Percentage (%) | Percentage (%) |
| Affected By | Cable length, current, resistance, conductor size | Load changes and source performance |
| Common Applications | Cable design, wiring installations | Power system performance evaluation |
Simply put:
- Voltage Drop measures how much voltage is lost in the cable.
- Voltage Regulation measures how well the power source maintains its output voltage when the load changes.
Selection Guide
Choosing the correct values before calculating the Voltage Drop Formula helps ensure accurate results and reliable electrical installations.
1. Determine the Load Current
Always calculate the maximum operating current of the connected equipment.
2. Measure the Cable Length
Use the actual cable route rather than the straight-line distance, as longer cables produce greater voltage drop.
3. Select the Conductor Material
Choose between:
- Copper (lower resistance and better conductivity)
- Aluminum (lighter and more economical but higher resistance)
Copper cables generally provide lower voltage drop for the same conductor size.
4. Choose the Correct Cable Size
Larger cable cross-sectional areas reduce resistance and minimize voltage loss.
5. Consider the System Type
Use the appropriate formula for:
- DC systems
- Single-phase AC systems
- Three-phase AC systems
Using the wrong formula can lead to inaccurate calculations.
6. Check the Power Factor
For industrial AC systems, include the power factor to improve calculation accuracy.
7. Follow Electrical Standards
Ensure that the calculated voltage drop complies with local electrical codes and industry standards for safe and efficient installations.
Common Problems & Solutions (FAQs)
Why is voltage drop high in my electrical system?
Possible Causes
- Long cable length
- Undersized conductor
- High load current
- Loose electrical connections
- Corroded terminals
Solution
Use a larger cable size, reduce cable length where possible, and inspect all electrical connections.
What is the acceptable voltage drop?
In many electrical installations:
- Branch circuits: Maximum 3%
- Total feeder and branch circuits combined: Maximum 5%
Always follow your local electrical regulations and applicable standards.
How can I reduce voltage drop?
You can reduce voltage drop by:
- Using larger conductors
- Shortening cable length
- Choosing copper cables
- Reducing unnecessary electrical load
- Improving power factor in AC systems
Does voltage drop affect motors?
Yes. Excessive voltage drop can:
- Reduce starting torque
- Increase motor current
- Cause overheating
- Shorten motor life
- Lower efficiency
Does cable size affect voltage drop?
Yes. Increasing the conductor size reduces electrical resistance, resulting in lower voltage drop and better system performance.
Future Trends (2026)
As electrical systems become smarter and more energy-efficient, Voltage Drop Formula calculations are also evolving with modern technology.
Smart Cable Sizing Software
Engineering software can now automatically calculate voltage drop and recommend the correct cable size, reducing design errors.
AI-Based Electrical Design
Artificial intelligence is being integrated into electrical design tools to optimize cable routing, improve energy efficiency, and minimize voltage losses.
Digital Power Monitoring
Modern electrical panels use smart meters and IoT-based monitoring systems to detect voltage drops in real time, enabling predictive maintenance.
High-Efficiency Conductors
Advancements in conductor materials and insulation technologies are reducing resistance and improving power transmission efficiency.
Renewable Energy Integration
As solar, wind, and battery storage systems become more common, accurate voltage drop calculations are increasingly important for maximizing system performance and minimizing energy losses.
Conclusion
The Voltage Drop Formula is one of the most important calculations in electrical engineering because it helps ensure that electrical equipment receives the correct operating voltage. By understanding the Voltage Drop Formula working principle, different calculation methods for DC, single-phase, and three-phase systems, and the factors that influence voltage loss, engineers and technicians can design safer, more efficient, and more reliable electrical installations. Proper voltage drop calculations improve equipment performance, reduce energy losses, extend the lifespan of electrical devices, and support compliance with electrical standards. Whether you are working on residential wiring, industrial power distribution, renewable energy systems, or commercial electrical projects, mastering the Voltage Drop Formula is an essential skill that forms the foundation of effective electrical system design and maintenance.
