Imagine trying to start your car in the morning. You turn the key, and the engine immediately starts running. Behind this simple action is a powerful energy storage device called a lead-acid battery. Without it, vehicles, backup power systems, and many electrical installations would not function properly.
Lead-acid batteries are among the oldest and most widely used rechargeable batteries in the world. Despite the development of modern battery technologies, they remain extremely important in automotive systems, solar energy storage, uninterruptible power supplies, and industrial applications.
For electrical students, technicians, and engineers, understanding the Lead-Acid Battery working principle, structure, and applications is essential. These batteries are commonly used in real-world electrical systems, making them a fundamental topic in electrical engineering.
In this article, you will learn what a Lead-Acid Battery is, how it works, its main components, different types, advantages and disadvantages, applications, and practical troubleshooting methods. The goal is to explain the concept clearly, just like a senior electrical engineer guiding a junior technician.
2. What is Lead-Acid Battery?

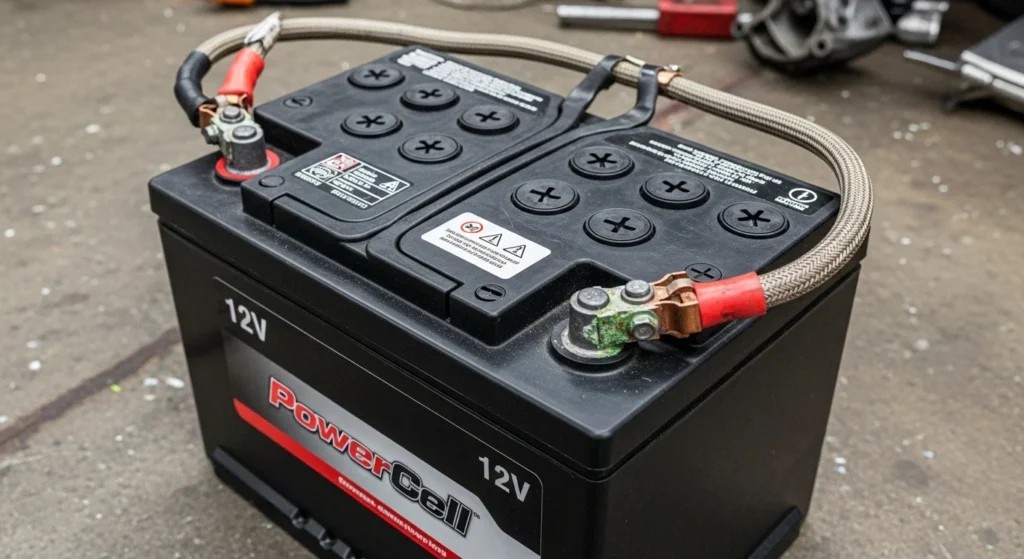

A Lead-Acid Battery is a rechargeable electrical battery that uses lead plates and sulfuric acid electrolyte to store and deliver electrical energy.
In simple terms, it is a device that converts chemical energy into electrical energy through a reversible chemical reaction.
When the battery supplies power to a circuit, a chemical reaction occurs between the lead plates and the electrolyte. When the battery is charged again, the reaction reverses, restoring the stored energy.
Simple Practical Example
A car battery is a common example of a lead-acid battery. It stores electrical energy and provides high current to start the engine. Once the engine starts, the alternator recharges the battery for future use.
Because of their reliability and relatively low cost, lead-acid batteries are widely used in both small and large electrical systems.
3. Lead-Acid Battery Working Principle
Understanding the Lead-Acid Battery working principle is important for anyone working with electrical power systems.
The operation of a lead-acid battery is based on electrochemical reactions between lead plates and sulfuric acid.
Step-by-Step Working Process
- Battery Structure The battery contains two types of plates:
- Positive plate (Lead dioxide – PbO₂)
- Negative plate (Sponge lead – Pb)
- Electrolyte The plates are immersed in sulfuric acid (H₂SO₄), which acts as the electrolyte.
- Discharging Process When the battery supplies electricity to a load:
- Chemical reactions occur at the plates
- Lead sulfate forms on both plates
- Electrical energy flows through the external circuit
- Charging Process When an external power source charges the battery:
- Lead sulfate converts back to lead and lead dioxide
- Sulfuric acid concentration increases
- The battery stores energy again
Simple Analogy
Think of the battery like a water tank. When you use electricity, it is similar to draining water from the tank. Charging the battery is like refilling the tank.
4. Types / Classification of Lead-Acid Battery
Lead-acid batteries are available in several designs depending on their applications and construction.
Flooded Lead-Acid Battery
This is the traditional and most common type.
Features:
- Plates submerged in liquid electrolyte
- Requires periodic maintenance
- Water level must be checked regularly
Applications include vehicles, power backup systems, and industrial equipment.
Sealed Lead-Acid Battery (SLA)
Sealed lead-acid batteries are maintenance-free batteries.
Characteristics:
- Sealed construction
- No need to refill water
- Reduced electrolyte leakage
These batteries are widely used in emergency lighting and UPS systems.
AGM (Absorbent Glass Mat) Battery
In this type, the electrolyte is absorbed in fiberglass mats.
Advantages include:
- Higher efficiency
- Better vibration resistance
- Faster charging capability
AGM batteries are used in modern vehicles and renewable energy systems.
Gel Lead-Acid Battery
Gel batteries use a gel-like electrolyte instead of liquid acid.
Features:
- Improved safety
- Less risk of leakage
- Longer lifespan in certain applications
They are commonly used in solar power storage systems.
5. Main Components of Lead-Acid Battery
A lead-acid battery consists of several important components.
1. Positive Plate
Made of lead dioxide (PbO₂).
Function:
- Participates in chemical reactions
- Produces electrical potential during discharge.
2. Negative Plate
Made of sponge lead (Pb).
Function:
- Works with the positive plate during electrochemical reactions.
3. Electrolyte
A mixture of sulfuric acid and water.
Function:
- Allows ions to move between plates
- Enables chemical reactions.
4. Battery Container
Usually made of hard plastic.
Function:
- Holds plates and electrolyte safely.
5. Separators
Thin insulating materials placed between plates.
Function:
- Prevent short circuits
- Allow electrolyte flow.
6. Battery Terminals
Metal connectors used to connect the battery to an electrical circuit.
6. Lead-Acid Battery Advantages
The Lead-Acid Battery advantages and disadvantages are important when choosing a battery for practical applications.
Advantages
- Low manufacturing cost
- Reliable and proven technology
- High surge current capability
- Easy availability
- Recyclable materials
- Suitable for backup power systems
- Simple charging methods
Because of these advantages, lead-acid batteries are still widely used worldwide.
7. Lead-Acid Battery Disadvantages / Limitations
Despite their usefulness, lead-acid batteries also have limitations.
Disadvantages
- Heavy weight compared to modern batteries
- Limited energy density
- Requires maintenance (for flooded types)
- Shorter lifespan compared to lithium batteries
- Sensitive to deep discharge
- Environmental concerns due to lead
Understanding these limitations helps technicians use them properly.
8. Lead-Acid Battery Applications
The Lead-Acid Battery applications are extremely widespread.
Automotive Industry
- Car starting batteries
- Motorcycle batteries
- Truck electrical systems
Backup Power Systems
- UPS (Uninterruptible Power Supply)
- Emergency lighting
- Backup generators
Renewable Energy Systems
- Solar power storage
- Off-grid energy systems
Industrial Applications
- Forklifts
- Telecommunication backup power
- Power stations
Home Applications
- Inverter batteries
- Emergency backup systems
9. Comparison Section
Difference Between Lead-Acid Battery and Lithium-Ion Battery
| Feature | Lead-Acid Battery | Lithium-Ion Battery |
|---|---|---|
| Cost | Low | Higher |
| Weight | Heavy | Lightweight |
| Lifespan | Shorter | Longer |
| Energy Density | Lower | Higher |
| Maintenance | Sometimes required | Maintenance-free |
| Charging Speed | Moderate | Fast |
This comparison helps engineers choose the right battery for specific applications.
10. Selection Guide
Choosing the correct battery depends on several factors.
Capacity Requirement
Battery capacity is measured in Ampere-hours (Ah).
Higher capacity means longer backup time.
Application Type
Different systems require different battery types.
Examples:
- Vehicles → Starting batteries
- Solar systems → Deep cycle batteries
Maintenance Requirements
If maintenance is difficult, sealed or AGM batteries may be better.
Budget Consideration
Lead-acid batteries are usually the most affordable option.
11. Common Problems & Solutions
Lead-acid batteries may face several practical problems.
Problem 1: Battery Not Charging
Possible causes:
- Faulty charger
- Damaged battery plates
Solution:
- Check charging system
- Replace battery if necessary
Problem 2: Low Battery Capacity
Cause:
- Sulfation on plates
Solution:
- Proper charging
- Avoid deep discharge
Problem 3: Overheating
Cause:
- Overcharging
- Poor ventilation
Solution:
- Use correct charger
- Ensure proper airflow
Problem 4: Corroded Terminals
Cause:
- Acid leakage
- Poor maintenance
Solution:
- Clean terminals
- Apply protective grease
12. Future Trends
Although lead-acid batteries are an old technology, improvements continue.
Improved Battery Designs
New designs increase efficiency and lifespan.
Advanced Recycling Methods
Lead-acid batteries are highly recyclable, making them environmentally manageable.
Hybrid Energy Systems
Lead-acid batteries are still used alongside modern technologies in solar and backup systems.
Smart Battery Monitoring
Modern battery management systems help monitor voltage, temperature, and performance.
13. Conclusion
The Lead-Acid Battery remains one of the most important energy storage devices used in electrical systems. Despite being an older technology, it continues to play a vital role in vehicles, backup power systems, solar energy storage, and industrial applications.
Understanding the Lead-Acid Battery working principle, components, types, and applications is essential for electrical students and technicians. The battery operates through a reversible chemical reaction between lead plates and sulfuric acid, allowing it to store and deliver electrical energy efficiently.
While the battery has certain disadvantages such as weight and limited lifespan, its low cost, reliability, and high surge current capability make it suitable for many practical uses.
For beginners entering the electrical field, learning about lead-acid batteries provides a strong foundation in energy storage technology and prepares them for working with real electrical systems.
