Imagine you are working in a workshop where a 230V motor must be tested at different voltage levels. You cannot connect it directly to the full supply because it may get damaged during testing. Instead, you use a device that allows you to smoothly adjust the voltage from zero to full value. That device is an Auto Transformer.
As electrical engineers and technicians, understanding transformer types is essential. While conventional transformers are widely used, the auto transformer has unique advantages in efficiency, size, and cost. It is commonly used in voltage regulation, motor starting, and laboratory testing.
In this article, you will learn the Auto Transformer working principle, types, construction, applications, advantages and disadvantages, and the difference between auto transformer and conventional transformer. I will explain everything in simple and practical language, just like guiding a junior engineer in the field.
2. What is Auto Transformer?

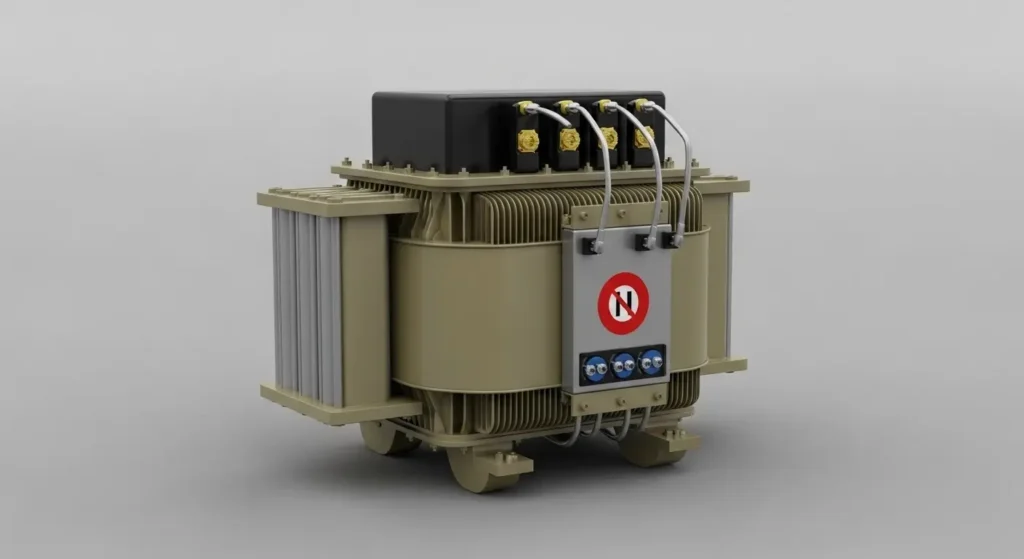

An Auto Transformer is a type of transformer that uses a single continuous winding for both primary and secondary circuits.
Simple Explanation
Unlike a conventional transformer that has two separate windings, an auto transformer has only one winding with tapping points. Part of the same winding acts as primary, and part acts as secondary.
Practical Example
If you need to convert 230V to 200V, you can take output from a tap on the same winding. The voltage is reduced depending on the number of turns used.
So, instead of two coils transferring energy magnetically, an auto transformer shares part of the winding directly.
3. Auto Transformer Working Principle
The Auto Transformer working principle is based on electromagnetic induction, just like a conventional transformer. However, it also has direct electrical connection between input and output.
Step-by-Step Working
- Input Supply Applied
- AC voltage is applied to the main winding.
- Magnetic Field Generation
- Current creates magnetic flux in the core.
- Induced Voltage
- Voltage is induced in the same winding.
- Tapping Output
- Output voltage is taken from a selected tap.
- Voltage Adjustment
- Changing tap position changes output voltage.
Easy Analogy
Think of a long staircase:
- Total steps represent total voltage.
- If you stand at step 10, you get lower height.
- If you stand at step 20, you get higher height.
The tap position decides the output voltage level.
Unlike conventional transformers, power transfer happens partly by:
- Electromagnetic induction
- Direct conduction
This makes it more efficient.
4. Types / Classification of Auto Transformer
4.1 Step-Up Auto Transformer
- Increases voltage.
- Output voltage higher than input.
- Used in transmission systems.
4.2 Step-Down Auto Transformer
- Decreases voltage.
- Output voltage lower than input.
- Used for motor starting and testing.
4.3 Variable Auto Transformer (Variac)
- Provides adjustable output voltage.
- Used in laboratories and testing environments.
- Very common in training institutes.
Each type serves different Auto Transformer applications.
5. Main Components of Auto Transformer
5.1 Core
Made of laminated steel.
Provides magnetic path.
5.2 Single Winding
Acts as both primary and secondary.
5.3 Tapping Points
Provide different voltage levels.
5.4 Insulation
Prevents short circuits between turns.
5.5 Terminals
Input and output connections.
The design is simpler compared to a two-winding transformer.
6. Auto Transformer Advantages and Disadvantages
Advantages
- Smaller size
- Lower cost
- Higher efficiency
- Less copper usage
- Better voltage regulation
- Suitable for small voltage differences
These Auto Transformer advantages and disadvantages must be understood before selecting it.
7. Disadvantages / Limitations
- No electrical isolation
- Not suitable for high voltage difference
- Safety risk due to direct connection
- Faults can directly pass to load
Because there is no isolation, it is not used where safety isolation is required.
8. Auto Transformer Applications
The Auto Transformer applications are common in both domestic and industrial sectors.
8.1 Motor Starting
Reduces starting current in induction motors.
8.2 Voltage Regulation
Used in stabilizers.
8.3 Laboratory Testing
Variable voltage supply.
8.4 Power Transmission
Interconnecting systems with small voltage difference.
8.5 Audio Systems
Impedance matching.
It is widely used where cost and efficiency matter.
9. Comparison Section
Difference Between Auto Transformer and Conventional Transformer
| Feature | Auto Transformer | Conventional Transformer |
|---|---|---|
| Windings | Single | Two separate |
| Isolation | No isolation | Electrical isolation |
| Size | Smaller | Larger |
| Cost | Lower | Higher |
| Efficiency | Higher | Slightly lower |
| Safety | Lower | Higher |
The major difference between conventional transformer and auto transformer is electrical isolation and winding structure.
10. Selection Guide
Choosing the right Auto Transformer depends on:
1. Voltage Ratio
Suitable for small voltage differences.
2. Load Capacity
Check kVA rating.
3. Safety Requirement
Avoid if isolation is needed.
4. Application Type
Motor starting, testing, or voltage control.
5. Cooling Method
Air-cooled for small units.
6. Budget
Cost-effective compared to two-winding transformers.
Always calculate load current before selecting rating.
11. Common Problems & Solutions
Q1: Why does the transformer overheat?
Reason: Overloading.
Solution: Use correct kVA rating.
Q2: Why is output voltage unstable?
Reason: Loose tap connection.
Solution: Tighten connections.
Q3: Why is there shock risk?
Reason: No isolation.
Solution: Ensure proper earthing.
Q4: Why is humming noise high?
Reason: Loose core laminations.
Solution: Proper mechanical tightening.
Routine maintenance increases lifespan.
12. Future Trends
Auto transformer technology continues improving.
Smart Voltage Regulators
Digital control integration.
Improved Insulation Materials
Higher temperature resistance.
Compact Designs
Space-saving industrial models.
Renewable Integration
Used with solar and hybrid systems.
Future designs will focus on safety and energy efficiency.
13. Conclusion
An Auto Transformer is a simple, efficient, and cost-effective device used for voltage transformation when isolation is not required. It works on electromagnetic induction but uses a single winding with tapping points, making it smaller and more economical than conventional transformers.
Understanding the Auto Transformer working principle, types, applications, and the difference between conventional transformer and auto transformer is essential for electrical students and professionals. While it offers high efficiency and better voltage regulation, it must be selected carefully due to the lack of isolation.
As a future engineer, always prioritize safety, correct rating selection, and proper installation. Strong fundamentals in transformer technology will strengthen your practical knowledge and professional growth.
